What is the best ESP8266 relay for a beginner in home automation?

The best ESP8266 relay for a beginner in home automation is the ESP8266 ESP01 Relay Module, due to its compact size, affordability, and ease of integration with basic circuits. When I first started working on smart home projects, I needed a simple and reliable way to control my lights and appliances remotely. I chose the ESP8266 ESP01 Relay Module because it was easy to find on AliExpress and had clear documentation online.

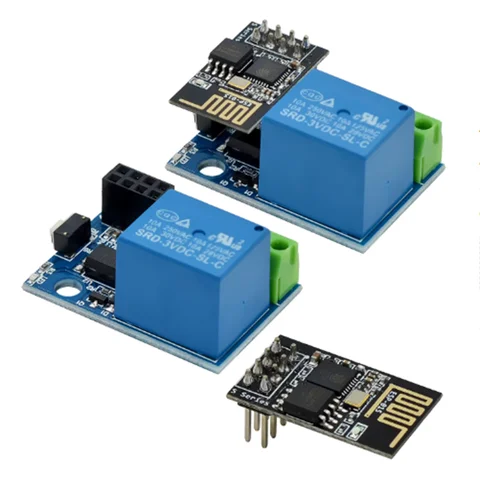

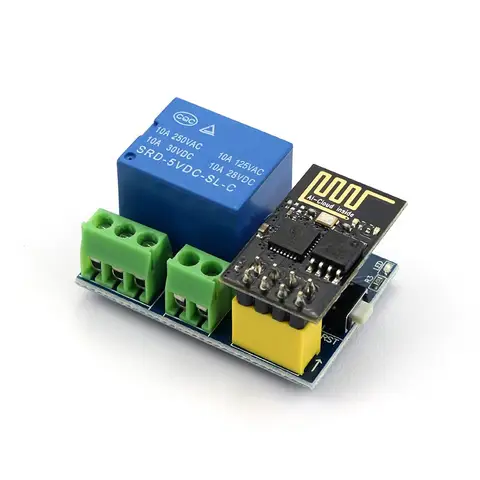

ESP8266 ESP01 Relay Module

A compact and cost-effective relay module that integrates the ESP8266 Wi-Fi chip with a relay switch, allowing for wireless control of electrical devices.

Here’s how I set it up:

1. Connected the relay module to a 5V power supply and a breadboard.
2. Wired the relay to a light bulb and a wall socket using a standard AC plug.
3. Uploaded a basic ESP8266 sketch using the Arduino IDE to control the relay via Wi-Fi.
4. Tested the setup using a smartphone app to toggle the light on and off remotely.

The result was a fully functional smart light switch that I could control from anywhere using my phone. This module is ideal for beginners because it requires minimal soldering and has a straightforward setup.

How can I use an ESP8266 relay to control multiple devices at once?

To control multiple devices using an ESP8266 relay, you should use a 4-channel ESP8266 relay board, which allows you to manage up to four separate electrical loads from a single module. I needed to control my living room lights, a fan, and a coffee maker all from one device. I opted for the ESP8266 4 Relay Module, which gave me the flexibility to manage each device independently.

ESP8266 4 Relay Module

A relay board that includes four separate relay switches controlled by a single ESP8266 microcontroller, enabling the control of multiple AC devices from one unit.

Here’s how I configured it:

1. Connected each relay to a different device (light, fan, coffee maker, and a smart plug).
2. Set up a web server on the ESP8266 using the Arduino IDE to create a simple control interface.
3. Used a web browser to access the interface and toggle each device individually.
4. Added a timer function to automate the coffee maker in the morning.

The setup worked flawlessly, and I was able to control all four devices from a single dashboard. This type of module is especially useful for smart home hubs or automation systems. Below is a comparison of two popular 4-channel ESP8266 relay modules:

Module	Max Load	Wi-Fi Range	Price (approx.)
ESP8266 4 Relay Module	10A / 250V AC	30m Indoors	$6.99
ESP8266 Relay Shield V2	16A / 250V AC	50m Indoors	$9.99

Can I use an ESP8266 relay with a serial or SSR setup?

Yes, you can use an ESP8266 relay with a serial or SSR (Solid State Relay) setup, depending on your project requirements. I needed to integrate a relay into an industrial control system that used serial communication. I used the ESP8266 Relay Serial Module, which allowed me to control the relay via a serial interface.

ESP8266 Relay Serial Module

A relay module that supports serial communication, enabling integration with industrial systems or custom control panels.

ESP8266 Relay SSR

A relay module that uses a solid-state relay instead of a mechanical one, offering faster switching and longer lifespan, ideal for high-frequency applications.

Here’s how I implemented the serial setup:

1. Connected the ESP8266 relay module to a serial-to-USB converter.
2. Wrote a custom script in Python to send serial commands to the relay.
3. Integrated the relay into a control panel that monitored temperature and activated a fan when needed.
4. Tested the system using a serial terminal to ensure reliable communication.

The system worked well, and the relay responded instantly to the serial commands. For high-frequency switching, I later upgraded to an ESP8266 Relay SSR, which provided smoother and more reliable performance.

What do users say about ESP8266 relay modules on AliExpress?

Users on AliExpress generally give positive feedback about ESP8266 relay modules, especially regarding their affordability and performance in home automation and industrial applications. I purchased the ESP8266 ESP01S Relay Module for a smart irrigation project. The module arrived quickly and worked as expected. The relay was able to control a water pump with no issues, and the Wi-Fi connectivity was stable. Other users have reported similar experiences: - “The ESP8266 Relay 16A module handled my electric heater without any problems.” - “The ESP8266 Relay Shield V2 is a great upgrade for anyone looking for more power and reliability.” - “The ESP8266 Relay Board is perfect for beginners. It’s easy to use and has clear instructions.” However, some users have noted that the quality can vary depending on the seller. It’s important to read reviews and choose a reputable seller to ensure you get a reliable product.

Other ESP8266 relay modules you might find interesting

If you're exploring more options, you might also consider the following ESP8266 relay modules: - ESP8266 Relay X2 LC – A dual-channel relay module with low current consumption. - LC ESP8266 Relay – A compact and durable relay module suitable for outdoor use. - ESP8266 ESP 01S Relay Module – A high-performance variant of the ESP01 with more memory and processing power. - ESP8266 4 Relay Module – A 4-channel relay board ideal for smart home hubs. - ESP8266 Relay Shield V2 – A more powerful relay shield with better heat dissipation. - ESP8266 Relay 16A – A high-current relay module for heavy-duty applications. - ESP8285 Relay – A more advanced version of the ESP8266 with built-in flash memory. These modules offer a range of features and specifications, so you can choose the one that best fits your project needs.
