What is a 200mA Fuse and When Should I Use It?
The 200mA fuse is a low-current protective device designed to safeguard sensitive electronic circuits from overcurrent conditions. If you're working on a project involving microcontrollers, sensors, or low-power LED arrays, you might be wondering whether a 200mA fuse is the right choice. Answer first: A 200mA fuse is ideal for circuits that draw up to 200 milliamps of current and need protection from short circuits or overloads. It is commonly used in low-power applications such as IoT devices, battery-powered gadgets, and small embedded systems. A fuse is an electrical safety device that interrupts the circuit when the current exceeds a safe level. A 200mA fuse is specifically rated to blow at 200 milliamps, making it suitable for low-power electronics. Here’s a breakdown of the key terms:
- Fuse
- A safety device that melts or breaks the circuit when excessive current flows through it.
- 200mA
- Stands for 200 milliamps, a unit of electric current. It is one-thousandth of an ampere.
To determine if a 200mA fuse is right for your project, follow these steps:
- Measure the maximum current your circuit draws under normal operation.
- Choose a fuse with a rating slightly higher than the normal current but lower than the maximum safe current of your components.
- Ensure the fuse has a voltage rating that matches or exceeds the voltage in your circuit.
For example, if you're building a sensor module that draws 180mA and has a 5V power supply, a 200mA fuse rated for at least 30V or 250V would be appropriate. This ensures the fuse can handle the voltage and protect the circuit without blowing under normal conditions.
How Do I Choose Between a 200mA Fuse and Other Fuse Ratings Like 300mA or 500mA?
If you're unsure whether to use a 200mA fuse or a higher-rated fuse like a 300mA or
500mA fuse, you're not alone. Many hobbyists and engineers face this decision when designing or repairing circuits. Answer first: Choose a 200mA fuse if your circuit draws less than 200mA. If your circuit draws more than 200mA but less than 300mA, a
300mA fuse is more appropriate. A
500mA fuse is suitable for circuits that draw up to 500mA. Here’s a comparison table to help you decide:
| Fuse Rating | Typical Use Case | Maximum Safe Current |
| 200mA | Low-power sensors, microcontrollers, LED arrays | Up to 200mA |
| 300mA | Small motor drivers, audio amplifiers | Up to 300mA |
| 500mA | Medium-power circuits, battery chargers | Up to 500mA |
When selecting a fuse, it's important to match the fuse rating to the expected current draw of your circuit. Using a 500mA fuse in a 200mA circuit may not provide adequate protection, as the fuse may not blow quickly enough in the event of a fault. For instance, in a project involving a
200mA 30V fuse, the fuse is designed to protect a low-voltage, low-current circuit from overloads. If you mistakenly use a 500mA fuse in the same circuit, it may not trip in time to prevent damage to sensitive components.
What Are the Key Features to Look for in a 200mA Fuse?
When shopping for a 200mA fuse, you may be overwhelmed by the variety of options available. You might be asking yourself what features are most important to consider. Answer first: Look for a 200mA fuse with a voltage rating that matches your circuit, a fast-acting or time-delayed response depending on your application, and a compact size if space is a concern. Here are the key features to consider when selecting a 200mA fuse:
- Voltage Rating
- The maximum voltage the fuse can safely interrupt. Common ratings include 30V, 63V, and 250V.
- Current Rating
- The maximum current the fuse can carry without blowing. In this case, 200mA.
- Response Time
- How quickly the fuse reacts to overcurrent. Fast-acting fuses blow immediately, while time-delayed fuses allow for brief current surges.
- Mounting Type
- Whether the fuse is through-hole, surface-mount (SMD), or PCB mount. SMD fuses like the 200mA 1206 are popular in compact designs.
For example, if you're working on a compact PCB design, a 200mA 1206 fuse is a good choice due to its small size and ease of soldering. On the other hand, if you're building a power supply for a
200mA 30V fuse application, you may prefer a through-hole fuse for easier replacement and better heat dissipation.
What Do Users Say About 200mA Fuses and Related Products?
If you're considering a 200mA fuse, you might also be interested in related products such as
250mA fuses,
400mA fuses, or even
2000mA 250V fuses for higher-power applications. Answer first: Users generally rate 200mA fuses highly for their reliability and performance in low-power circuits. They also appreciate the availability of similar fuses like 300mA, 400mA, and 500mA fuses for different current requirements. Here are some common user experiences and feedback: - Reliability: Many users report that 200mA fuses work as expected and provide consistent protection in low-power circuits. - Compatibility: Users often mention that 200mA fuses are compatible with a wide range of microcontroller boards and sensor modules. - Variety: The availability of fuses like 250mA, 300mA, and 500mA allows users to choose the right rating for their specific project. - Ease of Use: SMD fuses like the 200mA 1206 are praised for their compact size and ease of integration into PCB designs. Some users also mention that they use

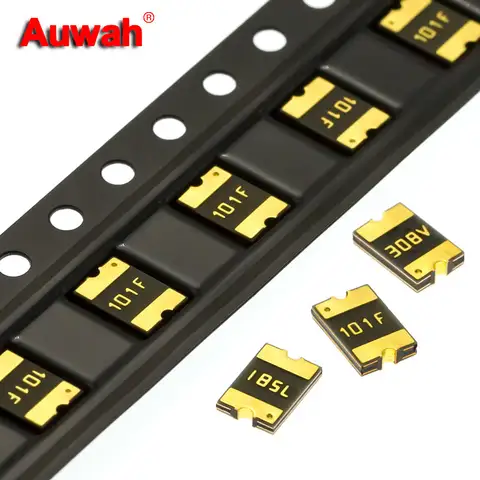

200mA resettable fuses in applications where frequent fuse replacement is inconvenient. These fuses automatically reset after the overcurrent condition is removed, making them ideal for temporary faults. If you're working on a project that requires a 200mA fuse, you may also find the following fuses useful: -
250mA fuse – For slightly higher current applications. -
300mA fuse – For circuits that draw up to 300mA. -
400mA fuse – For medium-power circuits. - 500mA fuse – For circuits that require more current. -
2000mA 250V fuse – For high-power applications with higher voltage requirements. Each of these fuses serves a specific purpose, and choosing the right one depends on your circuit’s current and voltage requirements.
